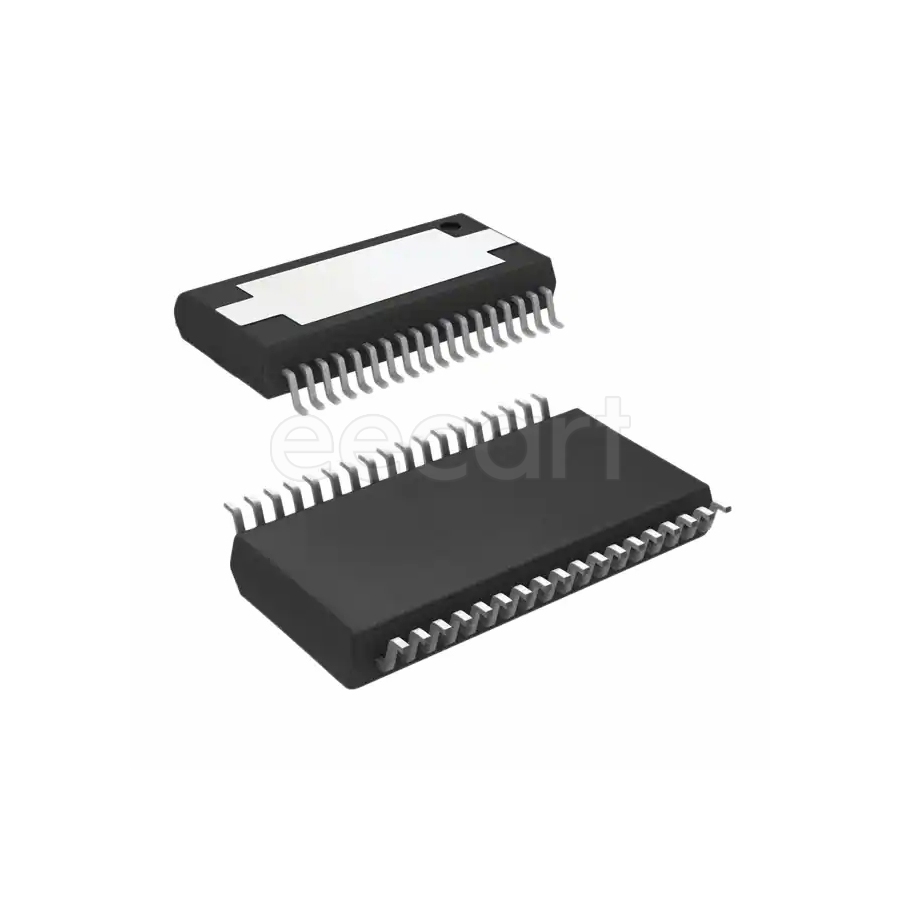

DRV8432DKDR
Manufacturer:
Texas Instruments
Mfr.Part #:
DRV8432DKDR
Datasheet:
Description:
Motor Drivers HSSOP-36 SMD/SMT PWM Load voltage:0 V to 52.5 V Half Bridge (4)
| Parameter | Value |
|---|---|
| Length | 15.9 mm |
| Width | 11 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 36 |
| Height | 3.6 mm |
| Packaging | Reel |
| Thickness | 3.5 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Interface | PWM |
| Output Current | 7 A |
| Operating Supply Voltage | 50 V |
| Lifecycle Status | Production (Last Updated: 5 days ago) |
| Max Supply Voltage | 52.5 V |
| Min Supply Voltage | 0 V |
| Power Dissipation | 5 W |
| Max Output Current | 12 A |
| Operating Supply Current | 10.5 mA |
| Output Configuration | Half Bridge (4) |
| Number of Outputs | 2 |
| Nominal Supply Current | 10.5 mA |
| Output Current per Channel | 7 A |
| Fault Protection | Over Temperature, Short Circuit |
| Chemistry/Technology | Power MOSFET |
| Schedule B | 8542390000 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 5 days ago) |
| Applications | DC Motors, Stepper Motors |
| Load Voltage | 0 V to 52.5 V |
Stock: 281
Distributors
pcbx
pcbxUnit Price$21.16320
Ext.Price$21.16320
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $21.16320 | $21.16320 |
| 10 | $20.11883 | $201.18830 |
| 25 | $19.12598 | $478.14950 |
